[h3_with_line]HARDWARE[/h3_with_line]

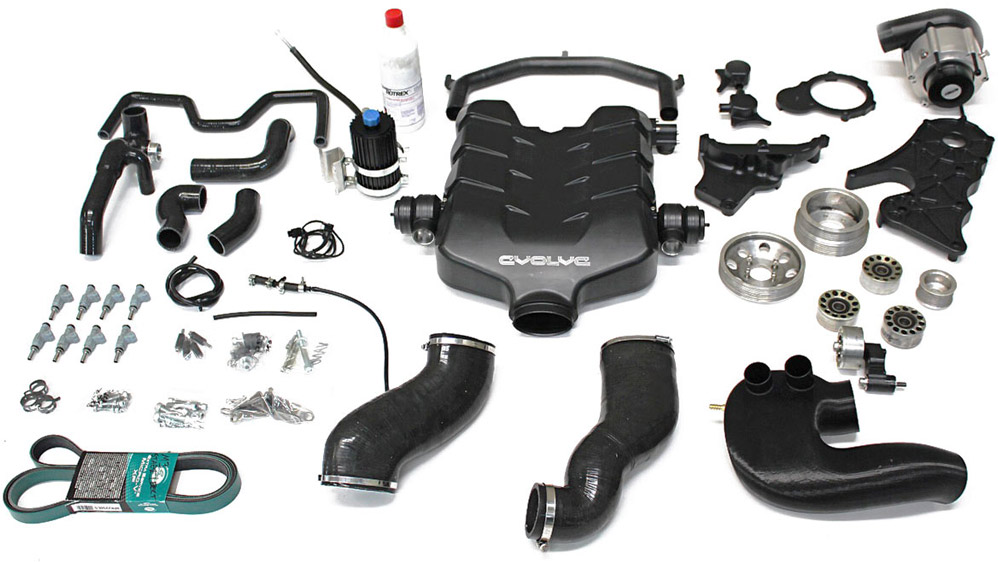

Rotrex C38-91 Supercharger (1100CFM)
Self Contained Lubrication System with separate oil cooler
High Tension 8 Rib Belt System with 270 Deg Belt Wrap
Front Mounted Air to Air Intercooler
Xylan Coated (Standard Black Finish) CNC Machined Billet Aluminium Bracket
Xylan Coated CNC Machined Billet Aluminium Bracket Supercharger Bracket Housing
Xylan Coated CNC Machined Billet Aluminium Plenum with CFD Optimised Velocity Stacks
Xylan Coated CNC Machined Billet Aluminium Lower Bank 2 VANOS Cover
8 Rib Aluminium Crank and Water Pump Pulleys
Evolve High Flow Intake CFD Optimised
Motorsport Fuel Injectors
Boost Hoses
Silicone Hoses
Clamps
Brackets
[h3_with_line]ECU MANAGEMENT[/h3_with_line]
Calibration optimised both on dyno and road under various weather conditions
Evolve Recalibrated MSS65 DME with optimized
Fuel
Ignition
Torque Calculation
CAM Timing
Calibrations for 91(US)/95(EUR) + Octane Fuel
Air to Air Front Mount Intercooled 600-625 HP @ 7.5-8 PSI (Requires Primary Cat Delete)
[h3_with_line]DETAILS[/h3_with_line]
Dyno at the flywheel
